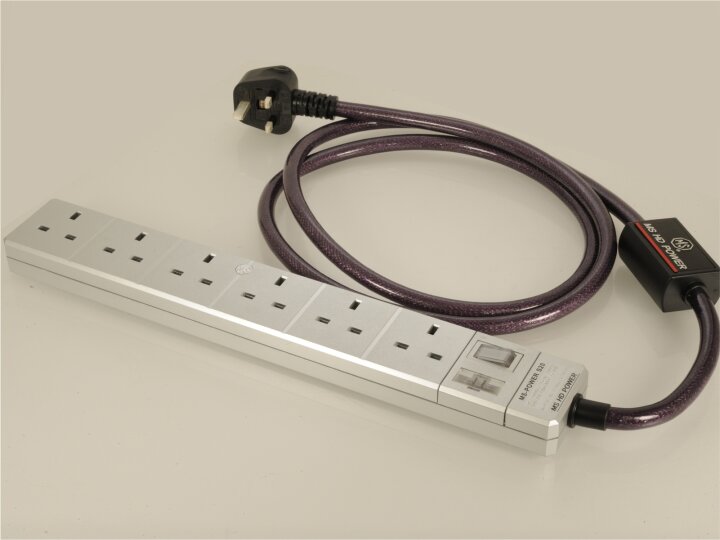

MS HD Power MS-POWER S20 V3 6 Ways Distribution Block

A high specification 6 way distribution block with integral cable and UK plug - for audio and A/V use, with silver plated power conductors throughout.

A 6 ways switched distribution block with integral 2 Mtr. cable and plug that offers very high quality specifications. The V3 design includs silver plated conductors throughout to offer quality mains power distribution for audio and A/V use, and improved electronics over the previous V2 option, and with increased Surge Suppression, EMI and RF immunity, is a big step up in mains power performance from its lower cost 'brother' the MS-1080P-V3 distribution block.

Each part of this distribution block has been designed for audio and A/V use.

The 2m long integral mains cable is made from 3 Core 6N OFC wire and double screened. The mains plug has silver plated conductors and a silver plated 13A fuse. The internal power 'buss-bars' are an impressive silver plated 5mm sq. for instant power transmission, the high spring rate silver plated phosphor bronze socket clips pass the BS Standard 30,000 times plug IN / OUT test and the high spring rate phosphor bronze fuse clips are also silver plated.

This distribution block also comes with a high quality noise filtration network, effective EMI and RFI suppression, and anti-surge protection - to ensure your equipment is safe from mains spikes, and your audio sound quality is not impaired by noisy mains.

Specifications:

  • Number of outlets: 6
  • Conforms to BS1363
  • Mains lead: 2m. Conforms to VDE standards
  • UK plug, BS1363; fused and un-switched, with 3.0 µm Pure 925 Silver Plated Pins
  • Fuse: 13A BS-1362 Silver Fuse fitted at plug
  • 13A BS-1362 Silver Fuse fitted at distribution strip
  • 3.0 µm Pure 925 Silver Plating to All high spring rate phosphor bronze power clips
  • Mains Voltage: 200 - 240 VAC / 50~60Hz
  • Mains on/off Switch: Fitted on distribution strip
  • PRRT Noise Filtration Network using Selected Components
  • Excellent EMI and RFI Suppression to Improve Audio and Visual Performance
  • 48,000 Amp. Surge Suppression Protect Hi Fi / AV Appliances
  • 5 mm² Power Transmission Bus Bars with Pure Silver Plating for High Current Flow
  • Max. Current: 13 Amp.
  • Max. Wattage: 3,000 Watt (230V)
  • Dimensions: 60mm x 402mm x 30mm (W x L x H)
  • Net Weight: 0.8 KG (net)
